TikTok

$159.99

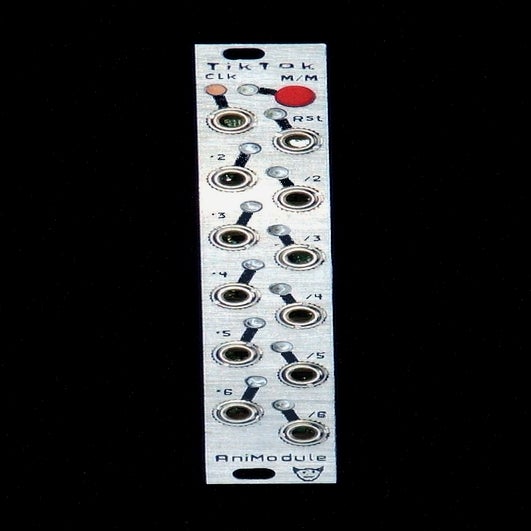

The TikTok is a 4HP Clock Divider/Multiplier.

It has Divisions and Multiplications of:
*//2
*//3
*//4
*//5
*//6

There is a Clk Input and a Reset Input.
Both are buffered with an opamp based comparator circuit.
They are looking for approximately +1.1V on a rising edge.
This means that you are not constrained to gate (pulse) signals to trigger them.

The Reset input resets your divisions clock counter to 1

There is a switch to select Mathematical or Musical divisions.

The Multiplication Outputs 25MS Trigger pulses.
The Division Outputs are on as long as your Clock source.

Avg Current draw:
40 mA
-9 mA
Peak Current Draw:
80 mA
-17 mA

Width = 4HP
Depth = 38mm
